GLASS LINED AGITATOR
Introduction
Glass lined agitator is componented by 20#steel tube with premium industrial enamel via 900+ temperature glassing.
Kingsmate persuite the excellent process tech.more than 20years, produce high trength glass lined agitator with various shape and application. They are used on different appropriate chemical mixing condition in tanks, keeping service for chemical, pharmaceutical, petrochemical industries.
Features
For valueable using on different viscosity corrosive solution, agitators blades are separated many types

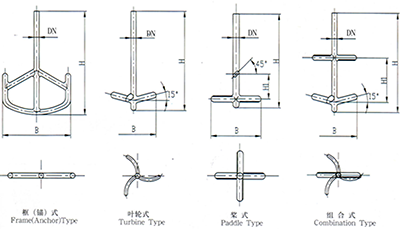

frame type, anchor type, paddle type, impeller type, hydrofoil type, other customized blades type.
Description
| EQUIPMENT | FRAME(ANCHOR)TYPE | TURBIN TYPE | PADDLE TYPE | COMBINATION TYPE | |||||||||||
| DN | B | H | DN | B | H | DN | B | H1 | H | DN | B | H1 | H | ||
| K50 | 40 | 420 | 930 | 40 | 300 | 900 | 40 | 300 | / | 900 | 40 | 300 | / | 900 | |
| K100 | 40 | 520 | 1050 | 40 | 300 | 1050 | 40 | 300 | / | 1050 | 40 | 300 | / | 1050 | |
| K200 | 50 | 620 | 1290 | 50 | 400 | 1250 | 50 | 400 | 150 | 1250 | 50 | 400 | / | 1250 | |
| K300 | 65 | 720 | 1440 | 65 | 500 | 1400 | 65 | 400 | 200 | 1400 | 65 | 500 | / | 1400 | |
| K500 | 65 | 810 | 1670 | 65 | 500 | 1590 | 65 | 450 | 220 | 1590 | 65 | 500 | 400 | 1590 | |
| K1000 | 80 | 1080 | 1910 | 80 | 700 | 1880 | 80 | 680 | 300 | 1880 | 80 | 700 | 600 | 1880 | |
| K1500 | 80 | 1180 | 2140 | 80 | 700 | 2140 | 80 | 680 | 340 | 2140 | 80 | 700 | 600 | 2140 | |
| K2000 | 80 | 1180 | 2480 | 80 | 700 | 2480 | 80 | 680 | 340 | 2480 | 80 | 700 | 600 | 2480 | |
| K3000 | 95 | 1440 | 2500 | 95 | 800 | 2500 | 95 | 720 | 360 | 2500 | 95 | 800 | 700 | 2500 | |
| K4000 | 95 | 1440 | 3000 | 95 | 800 | 3000 | 95 | 720 | 360 | 3000 | 95 | 850 | 700 | 3000 | |
| K5000 | 95 | 1580 | 3000 | 95 | 850 | 3000 | 95 | 720 | 360 | 3000 | 95 | 850 | 800 | 3000 | |
| K6300 | 95 | 1580 | 3680 | 95 | 850 | 3600 | 95 | 720 | 360 | 3600 | 95 | 850 | 800 | 3600 | |
| EQUIPMENT | TURBIN TYPE | PADDLE TYPE | COMBINATION TYPE | |||||||||
| DN | B | H | DN | B | H1 | H | DN | B | H1 | H | ||
| F3000 | 95 | 800 | 2500 | 95 | 720 | 360 | 2500 | 95 | 800 | 700 | 2500 | |
| F4000 | 95 | 800 | 3000 | 95 | 720 | 360 | 3000 | 95 | 800 | 700 | 3000 | |
| F5000 | 95 | 850 | 3000 | 95 | 720 | 360 | 3000 | 95 | 850 | 800 | 3000 | |
| F6300 | 95 | 850 | 3600 | 95 | 720 | 360 | 3600 | 95 | 850 | 800 | 3600 | |
| F8000 | 110 | 1100 | 3930 | 110 | 880 | 440 | 3930 | 110 | 1100 | 1000 | 3930 | |
| F10000 | 110 | 1200 | 4130 | 110 | 980 | 490 | 4130 | 110 | 1200 | 1100 | 4130 | |
| F12500 | 110 | 1200 | 4650 | 110 | 980 | 490 | 4650 | 110 | 1200 | 1100 | 4650 | |
| F16000 | 130 | 1200 | 4980 | 130 | 980 | 490 | 4980 | 130 | 1200 | 1200 | 4980 | |
| F20000 | 140 | 1300 | 5470 | 140 | 1080 | 540 | 5470 | 140 | 1300 | 1200 | 5470 | |
